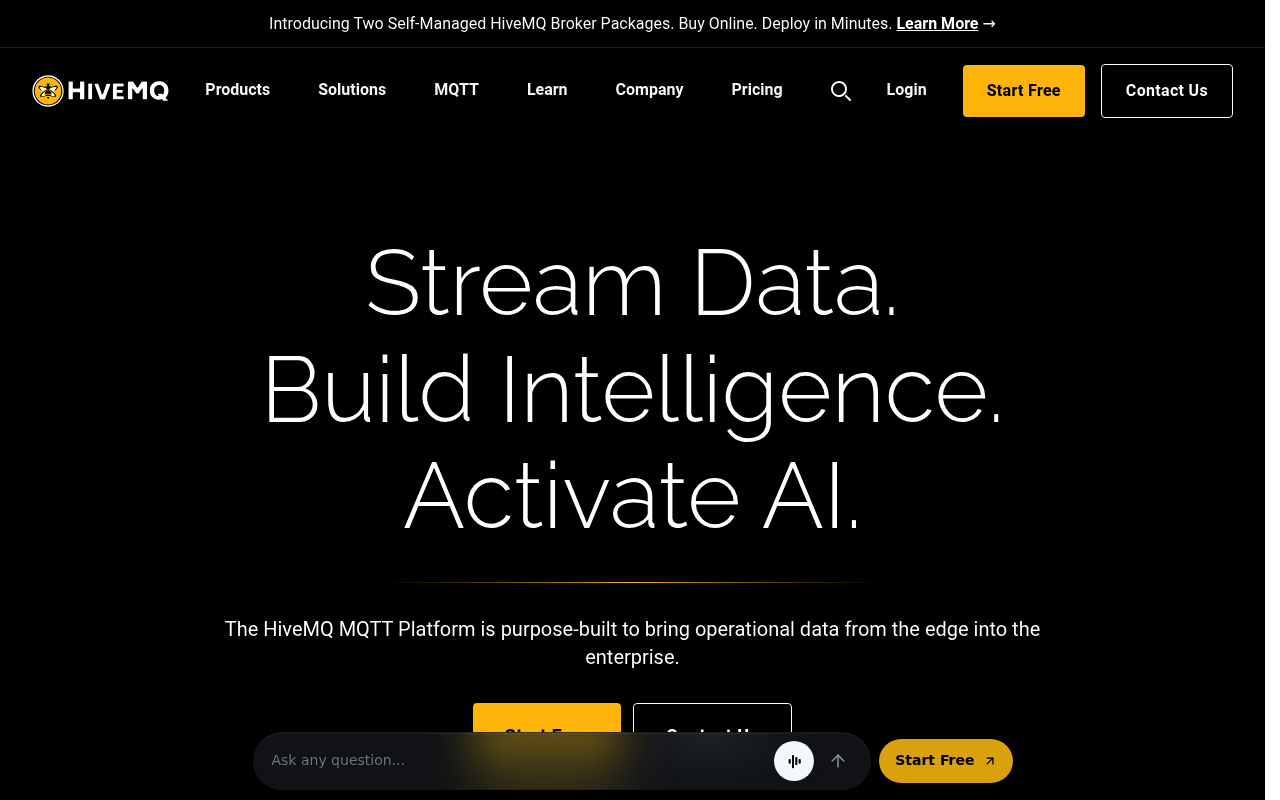

HiveMQ website screenshot

HiveMQ

HiveMQ is an enterprise MQTT broker and IoT connectivity platform that provides reliable, scalable bidirectional messaging between connected devices and back-end systems using the MQTT protocol. It supports MQTT 3, MQTT 5, MQTT over WebSocket, clustering, multi-cloud deployments, and an extensible enterprise extension framework for security, data routing, and stream processing through HiveMQ Data Hub. HiveMQ exposes a REST API (OpenAPI 3.0) for broker administration, client management, backups, trace recordings, and Data Hub policy management.

2 APIs 0 Features
MQTTIoTMessagingMessage BrokerPub SubWebSocket

APIs

HiveMQ REST API

REST API for administering a HiveMQ broker including client listing and disconnection, session invalidation, backup and restore, diagnostic archive generation, trace recordings,...

HiveMQ MQTT over WebSocket

MQTT 3.x and MQTT 5 messaging endpoints exposed over WebSocket for browser and edge clients to publish and subscribe to topics. Used by web dashboards and JavaScript IoT clients...

Collections

HiveMQ REST API

OPEN

Event Specifications

HiveMQ MQTT Broker

AsyncAPI description of the message-oriented surface of a HiveMQ enterprise MQTT broker. HiveMQ implements MQTT 3.1, MQTT 3.1.1, and MQTT 5 over plain TCP, TLS, WebSocket, and S...

ASYNCAPI

Resources

🔗
Website
Website
🔗
Documentation
Documentation
💰
Pricing
Pricing
📝
Signup
Signup
🔗
Cloud
Cloud
👥
GitHub
GitHub
🔗
Community Edition
Community Edition
📰
Blog
Blog
🔗
LinkedIn
LinkedIn
🔗
LlmsText
LlmsText

Sources

Raw ↑
opencollection: 1.0.0
info:
  name: HiveMQ REST API
  version: '1.0'
request:
  auth:
    type: bearer
    token: '{{bearerToken}}'
items:
- info:
    name: List MQTT clients
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/mqtt/clients
  docs: List MQTT clients
- info:
    name: Get details for a specific MQTT client
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/mqtt/clients/:clientId
    params:
    - name: clientId
      value: ''
      type: path
  docs: Get details for a specific MQTT client
- info:
    name: Disconnect an MQTT client
    type: http
  http:
    method: DELETE
    url: http://127.0.0.1:8888/api/v1/mqtt/clients/:clientId
    params:
    - name: clientId
      value: ''
      type: path
  docs: Disconnect an MQTT client
- info:
    name: Get connection status of an MQTT client
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/mqtt/clients/:clientId/connection
    params:
    - name: clientId
      value: ''
      type: path
  docs: Get connection status of an MQTT client
- info:
    name: List subscriptions for a client
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/mqtt/clients/:clientId/subscriptions
    params:
    - name: clientId
      value: ''
      type: path
  docs: List subscriptions for a client
- info:
    name: Invalidate the client session
    type: http
  http:
    method: DELETE
    url: http://127.0.0.1:8888/api/v1/mqtt/clients/:clientId/session
    params:
    - name: clientId
      value: ''
      type: path
  docs: Invalidate the client session
- info:
    name: List backups
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/backups
  docs: List backups
- info:
    name: Create a backup
    type: http
  http:
    method: POST
    url: http://127.0.0.1:8888/api/v1/management/backups
  docs: Create a backup
- info:
    name: Get a backup
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/backups/:backupId
    params:
    - name: backupId
      value: ''
      type: path
  docs: Get a backup
- info:
    name: Delete a backup
    type: http
  http:
    method: DELETE
    url: http://127.0.0.1:8888/api/v1/management/backups/:backupId
    params:
    - name: backupId
      value: ''
      type: path
  docs: Delete a backup
- info:
    name: Restore a backup
    type: http
  http:
    method: POST
    url: http://127.0.0.1:8888/api/v1/management/backups/:backupId/restore
    params:
    - name: backupId
      value: ''
      type: path
  docs: Restore a backup
- info:
    name: Download a backup file
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/backups/:backupId/file
    params:
    - name: backupId
      value: ''
      type: path
  docs: Download a backup file
- info:
    name: List diagnostic archives
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/diagnostic-archives
  docs: List diagnostic archives
- info:
    name: Create a diagnostic archive
    type: http
  http:
    method: POST
    url: http://127.0.0.1:8888/api/v1/management/diagnostic-archives
  docs: Create a diagnostic archive
- info:
    name: Get a diagnostic archive
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/diagnostic-archives/:archiveId
    params:
    - name: archiveId
      value: ''
      type: path
  docs: Get a diagnostic archive
- info:
    name: Delete a diagnostic archive
    type: http
  http:
    method: DELETE
    url: http://127.0.0.1:8888/api/v1/management/diagnostic-archives/:archiveId
    params:
    - name: archiveId
      value: ''
      type: path
  docs: Delete a diagnostic archive
- info:
    name: List trace recordings
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/trace-recordings
  docs: List trace recordings
- info:
    name: Start a trace recording
    type: http
  http:
    method: POST
    url: http://127.0.0.1:8888/api/v1/management/trace-recordings
  docs: Start a trace recording
- info:
    name: Get a trace recording
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/trace-recordings/:recordingId
    params:
    - name: recordingId
      value: ''
      type: path
  docs: Get a trace recording
- info:
    name: Stop and delete a trace recording
    type: http
  http:
    method: DELETE
    url: http://127.0.0.1:8888/api/v1/management/trace-recordings/:recordingId
    params:
    - name: recordingId
      value: ''
      type: path
  docs: Stop and delete a trace recording
- info:
    name: Download a trace recording file
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/management/trace-recordings/:recordingId/file
    params:
    - name: recordingId
      value: ''
      type: path
  docs: Download a trace recording file
- info:
    name: List Data Hub schemas
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/data-hub/schemas
  docs: List Data Hub schemas
- info:
    name: Create a Data Hub schema
    type: http
  http:
    method: POST
    url: http://127.0.0.1:8888/api/v1/data-hub/schemas
  docs: Create a Data Hub schema
- info:
    name: Get a Data Hub schema
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/data-hub/schemas/:schemaId
    params:
    - name: schemaId
      value: ''
      type: path
  docs: Get a Data Hub schema
- info:
    name: Delete a Data Hub schema
    type: http
  http:
    method: DELETE
    url: http://127.0.0.1:8888/api/v1/data-hub/schemas/:schemaId
    params:
    - name: schemaId
      value: ''
      type: path
  docs: Delete a Data Hub schema
- info:
    name: List Data Hub policies
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/data-hub/policies
  docs: List Data Hub policies
- info:
    name: Create a Data Hub policy
    type: http
  http:
    method: POST
    url: http://127.0.0.1:8888/api/v1/data-hub/policies
  docs: Create a Data Hub policy
- info:
    name: Get a Data Hub policy
    type: http
  http:
    method: GET
    url: http://127.0.0.1:8888/api/v1/data-hub/policies/:policyId
    params:
    - name: policyId
      value: ''
      type: path
  docs: Get a Data Hub policy
- info:
    name: Update a Data Hub policy
    type: http
  http:
    method: PUT
    url: http://127.0.0.1:8888/api/v1/data-hub/policies/:policyId
    params:
    - name: policyId
      value: ''
      type: path
  docs: Update a Data Hub policy
- info:
    name: Delete a Data Hub policy
    type: http
  http:
    method: DELETE
    url: http://127.0.0.1:8888/api/v1/data-hub/policies/:policyId
    params:
    - name: policyId
      value: ''
      type: path
  docs: Delete a Data Hub policy
bundled: true
